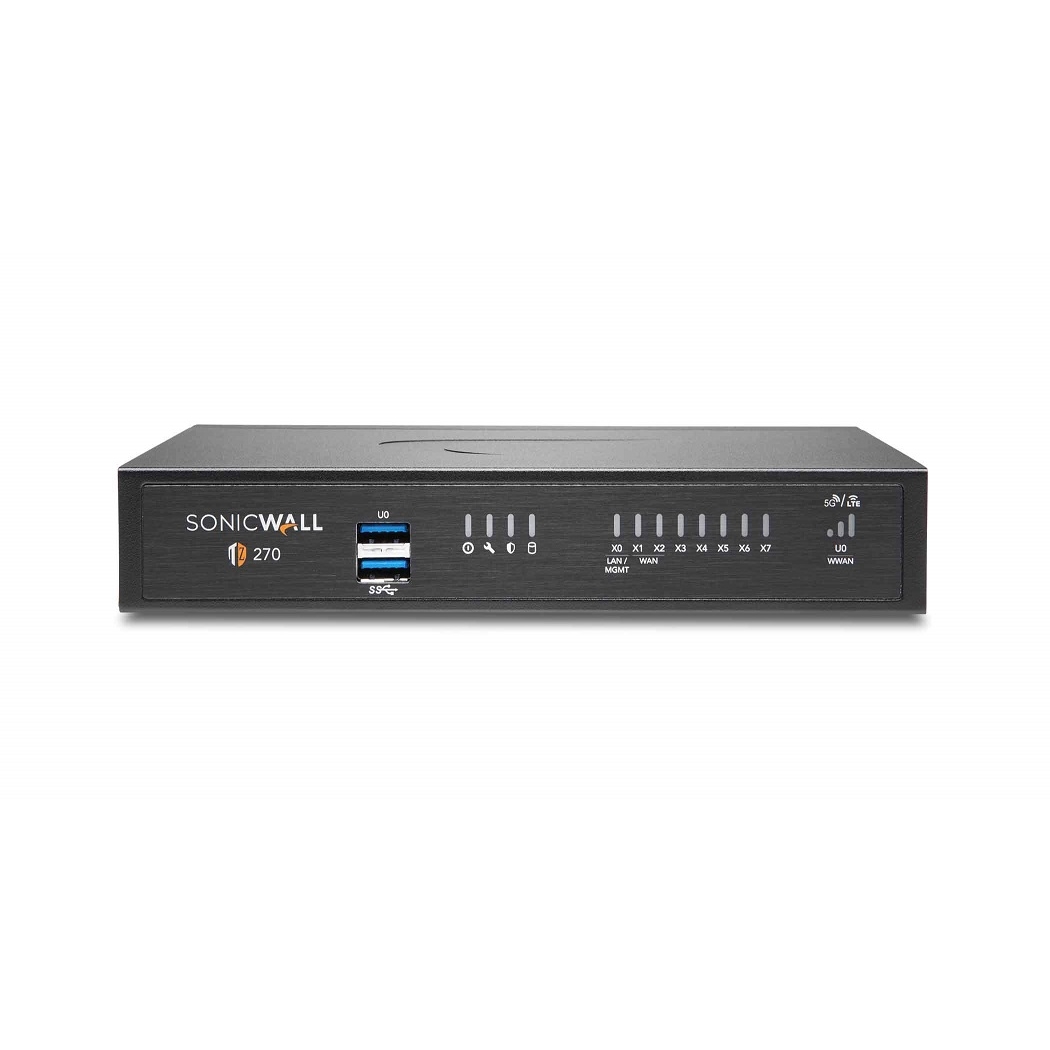

SONICWALL TZ270
TL
| Firewall General | TZ270 SERIES |
| Operating system | SonicOS 7.0 |
| Interfaces | 8x1GbE, 2 USB 3.0, 1 Console |
| Wireless support | 2x2 802.11ac Wave 2 |
| (TZ270W) | |
| Power over Ethernet (PoE) support | N/A |
| Storage Expansion slot | Optional up to 256GB |
| Management | Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs |
| Redundant power supply | N/A |
| Single Sign-On (SSO) Users | 1,000 |
| VLAN interfaces | 64 |
| Access points supported (maximum) | 16 |
| Firewall/VPN Performance | TZ270 SERIES |
| Firewall inspection throughput1 | 2 Gbps |
| Threat Prevention throughput2 | 750 Mbps |
| Application inspection throughput2 | 1 Gbps |
| IPS throughput2 | 1 Gbps |
| Anti-malware inspection throughput2 | 750 Mbps |
| TLS/SSL inspection and decryption throughput (DPI SSL)2 | 300 Mbps |
| IPSec VPN throughput3 | 750 Mbps |
| Connections per second | 6,000 |
| Maximum connections (SPI) | 750,000 |
| Maximum connections (DPI) | 150,000 |
| Maximum connections (DPI SSL) | 25,000 |
| VPN | TZ270 SERIES |
| Site-to-site VPN tunnels | 50 |
| IPSec VPN clients (maximum) | 5 (200) |
| SSL VPN licenses (maximum) | 1 (50) |
| Encryption/authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
| Key exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based VPN | RIP, OSPF, BGP |
| Certificate support | Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP |
| VPN features | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Global VPN client platforms supported | Microsoft® Windows 10 |
| NetExtender | Microsoft Windows 10, Linux |
| Mobile Connect | Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10 |
| Security Services | TZ270 SERIES |
| Deep Packet Inspection services | Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL |
| Content Filtering Service (CFS) | HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
| Comprehensive Anti-Spam Service | Yes |
| Application Visualization | Yes |
| Application Control | Yes |
| Capture Advanced Threat Protection | Yes |
| Networking | TZ270 SERIES |
| IP address assignment | Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay |
| NAT modes | 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode |
| Routing protocols4 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
| QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) |
| Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
| Local user database | 150 |
| VoIP | Full H.323v1-5, SIP |
| Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications | Granted: FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware |
| Pending: Common Criteria NDPP (with VPN and IPS), DoDIN, CSfC | |
| High availability | Active/Standby with stateful synchronization |
| Hardware | TZ270 SERIES |
| Form factor | Desktop4 |
| Power supply | 36W external |
| Maximum power consumption (W) | 16.84 (TZ270), |
| 18.91 (TZ270W) | |
| Input power | 100-240 VAC, |
| 50-60 Hz, 3A | |
| Total heat dissipation (BTU) | 57.42 (TZ270), |
| 64.48 (TZ270W) | |
| Dimensions | 3.5x13.5x19 (cm) |
| 1.8x5.3x7.5 (in) | |
| Weight | 0.82 kg / 1.81 lbs (TZ270), |
| 0.85 kg / 1.87 lbs (TZ270W) | |
| WEEE weight | 1.18 kg / 2.6 lbs (TZ270), |
| 1.24 kg / 2.73 lbs (TZ270W) | |
| Shipping weight | 1.41 kg / 3.11 lbs (TZ270), |
| 1.47 kg / 3.25 lbs (TZ270W) | |
| MTBF (in years) | 51.1 (TZ270), |
| 27.1 (TZ270W) | |
| Environment (Operating/Storage) | 32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C) |
| Humidity | 5-95% non-condensing |
| Regulatory | TZ270 SERIES |
| Major regulatory compliance (wired models) | FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL |
| Major regulatory compliance (wireless models) | FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL |
| Major regulatory compliance (PoE models) | N/A |
| Integrated Wireless5 | (TZ270W / 370W/ 470W / 570W ONLY) |
| Standards | 802.11a/b/g/n/ac Wave 2, WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS |
| Frequency bands | 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz |
| Operating channels | 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64; 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 |
| Transmit output power | Based on the regulatory domain specified by the system administrator |
| Transmit power control | Yes |
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15, 30, 45, 60, 90, 120, 135, 150 Mbps per channel; 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel |
| Modulation technology spectrum | 802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM) |
