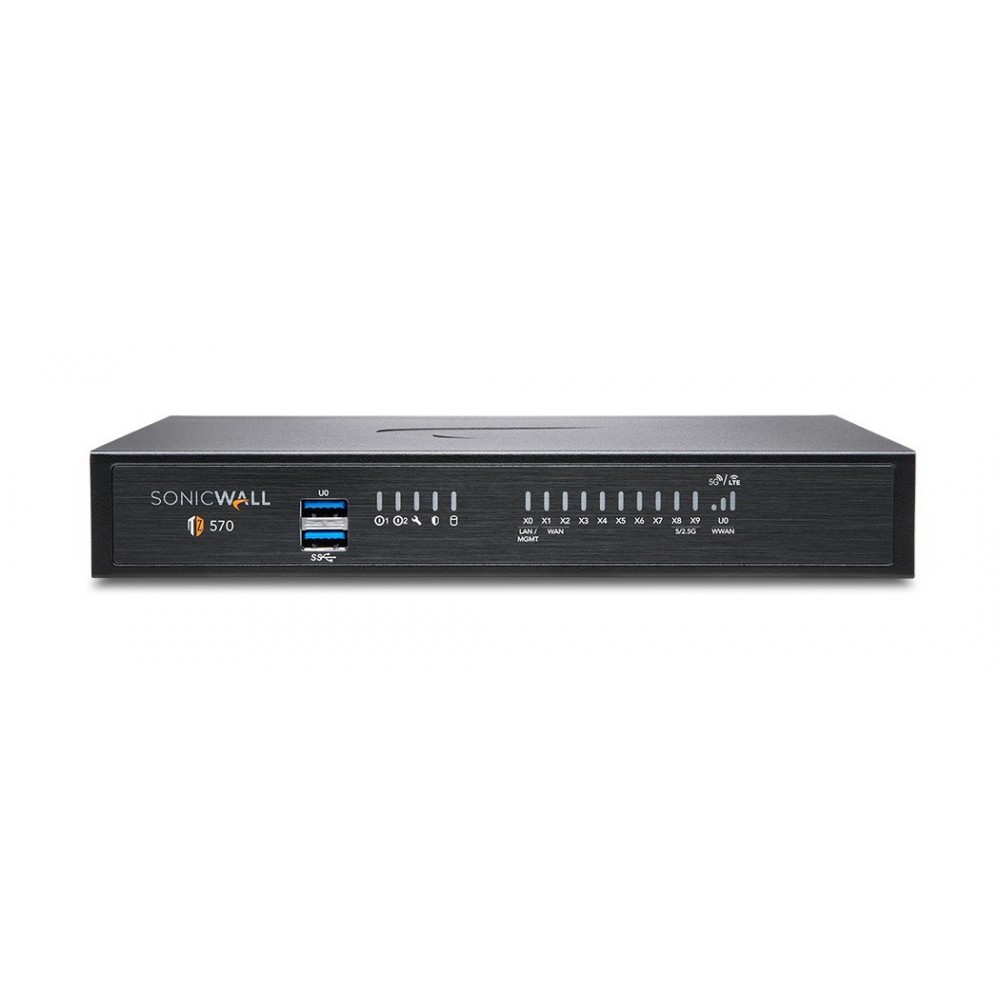

SONICWALL TZ570
TL
| Firewall General | TZ570 SERIES |
| Interfaces | 8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console |
| Wireless support | 2x2 802.11ac Wave 2 |
| (TZ570W) | |
| Power over Ethernet (PoE) support | 5 PoE or 3PoE+ (TZ570P) |
| Storage Expansion slot | |
| Management | |
| Redundant power supply | Yes |
| Single Sign-On (SSO) Users | 2,500 |
| VLAN interfaces | 256 |
| Access points supported (maximum) | 32 |
| Firewall/VPN Performance | TZ570 SERIES |
| Firewall inspection throughput1 | 4 Gbps |
| Threat Prevention throughput2 | 2 Gbps |
| Application inspection throughput2 | 2.5 Gbps |
| IPS throughput2 | 2.5 Gbps |
| Anti-malware inspection throughput2 | 2 Gbps |
| TLS/SSL inspection and decryption throughput (DPI SSL)2 | 750 Mbps |
| IPSec VPN throughput3 | 1.8 Gbps |
| Connections per second | 16,000 |
| Maximum connections (SPI) | 1,250,000 |
| Maximum connections (DPI) | 400,000 |
| Maximum connections (DPI SSL) | 50,000 |
| VPN | TZ570 SERIES |
| Site-to-site VPN tunnels | 200 |
| IPSec VPN clients (maximum) | 10 (500) |
| SSL VPN licenses (maximum) | 2 (200) |
| Local user database | 250 |
| Hardware | TZ570 SERIES |
| Form factor | |
| Power supply | 60W external (TZ570/570W), |
| 180W external (TZ570P only) | |
| Maximum power consumption (W) | 13.4 (TZ570), |
| 15.3 (TZ570W), | |
| 108.75 (TZ570P) | |
| Input power | 100-240 VAC, |
| 50-60 Hz | |
| Total heat dissipation (BTU) | 44.7 (TZ570), |
| 52.17 (TZ570W), | |
| 370.84 (TZ570P) | |
| Dimensions | 3.5x15x22.5 (cm) |
| 1.38x5.91x8.85 in | |
| Weight | 0.97 kg / 2.14 lbs (TZ570), |
| 0.99 kg / 2.18 lbs (TZ570W), | |
| 1.05 kg / 2.31 lbs (TZ570P) | |
| WEEE weight | 1.42 kg / 3.13 lbs (TZ570), |
| 1.47 kg / 3.24 lbs (TZ570W), | |
| 1.57 kg / 3.46 lbs (TZ570P) | |
| Shipping weight | 1.93 kg / 4.25 lbs (TZ570), |
| 1.98 kg / 4.36 lbs (TZ570W), | |
| 2.08 kg / 4.58 lbs (TZ570P) | |
| MTBF (in years) | 26.1 (TZ570), |
| 23.3 (TZ570W), | |
| 31.7 (TZ570P) | |
| Regulatory | TZ570 SERIES |
| Major regulatory compliance (wired models) | FCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/ MSIP, ANATEL |
| Major regulatory compliance (wireless models) | FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/ IC, CE (RED, RoHS), C-Tick, VCCI Class B, Japan Wireless, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL |
| Major regulatory compliance (PoE models) | FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, UL/ cUL, TUV/ GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/ MSIP, ANATEL |
